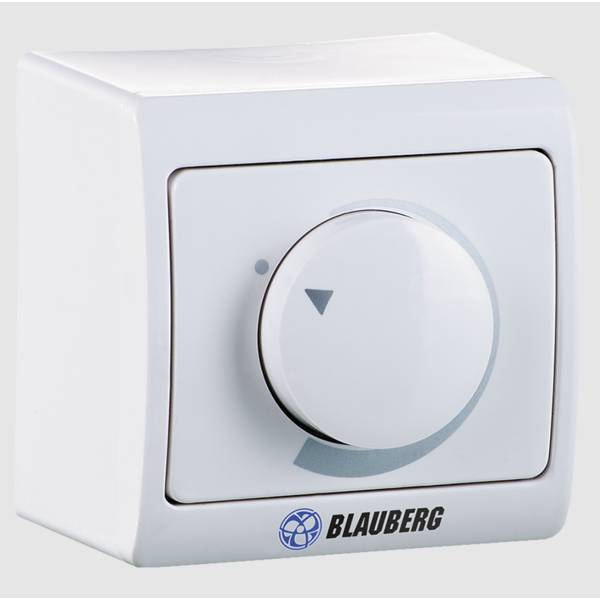

Blauberg - CDTE E1.8 Fan Controller 400W

To switch the fans on / off and to control the speed

Blauberg CDTE E1.8 is a wall potentiometer To switch fans on / off and to control the speed of frequency controlled single-phase motors.

For ventilation systems in various rooms

The minimum rotation speed is set by a variable resistor on the control panel. Multiple fans can be controlled from one unit as long as the total current consumption does not exceed the allowable current of the controller.

Features:

• High quality plastic casing.
• Surface mounting box.
• Degree of protection IP40.
• Switching on / off via the control knob.

PROTECTION

• Input circuit protected with thermal fuse.
• Equipped with transient filter.

ASSEMBLY:

• Indoor wall mounting.

Features:

• Voltage: 230V
• Phase 1
• Frequency: 50/60 Hz
• Rated current: 1.8 A
• Overall dimensions AxBxC: 80x80x64 mm
• Maximum ambient temperature: +35 ° С
• Ingress protection degree: IP40 -
• Weight 0.11 kg

Discover all our fans and extractors that can be connected to this potentiometer

Specifications

Manufacturer	Blauberg
Volt	230 Volt
Weight	0,11 Kg Kg
