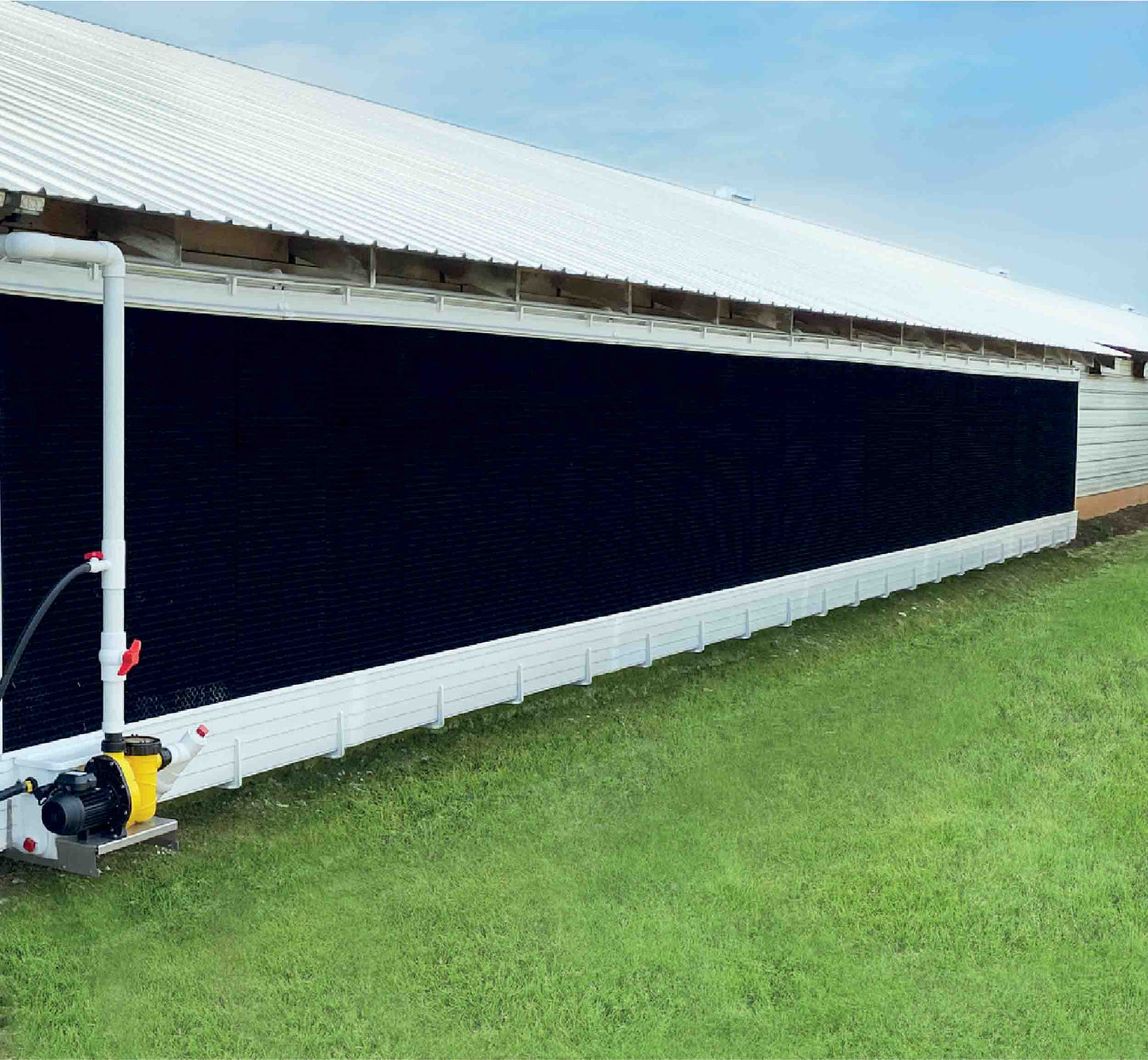

The technology of evaporative cooling
Water is transported through the system from a pump station and directed onto the pads from above via a water distribution pipe and the deflector.
The water then flows over the corrugated surface of the pads. Some of the water evaporates due to the warm and dry air flowing through the pads.

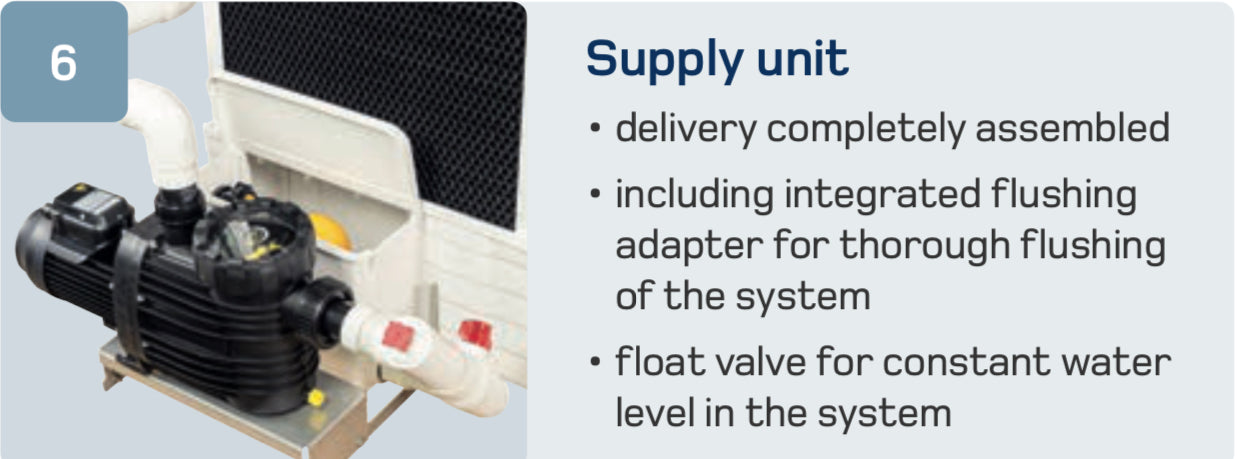

The remaining water is used to clean the pads and flows back to the supply unit via a water channel system.
The thermal energy required for evaporation is ob- tained directly from the air. Therefore, the air coming out of the pads is cooled and humidified at the same time - without any additional external energy supply for the evaporation process:

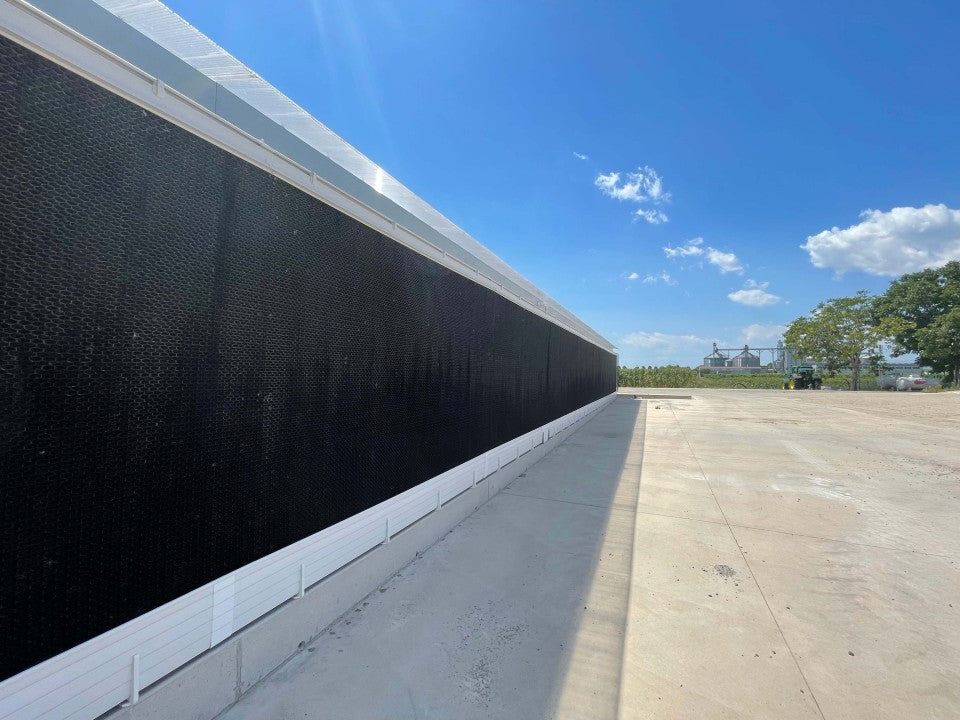

The Pad-Climate-System is available with plastic or paper pads in different sizes and power levels.
ADVANTAGES
OF THE LUBING PAD CLIMATE SYSTEMS
-

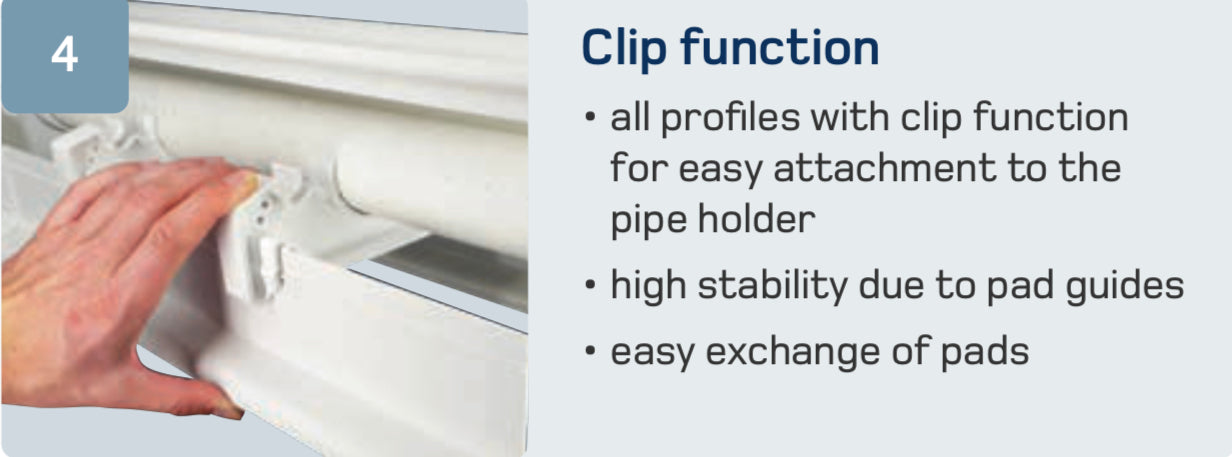

easy installation thanks to the newly designed clip profiles
-
no corrosion – all parts made of PVC or stainless steel
-

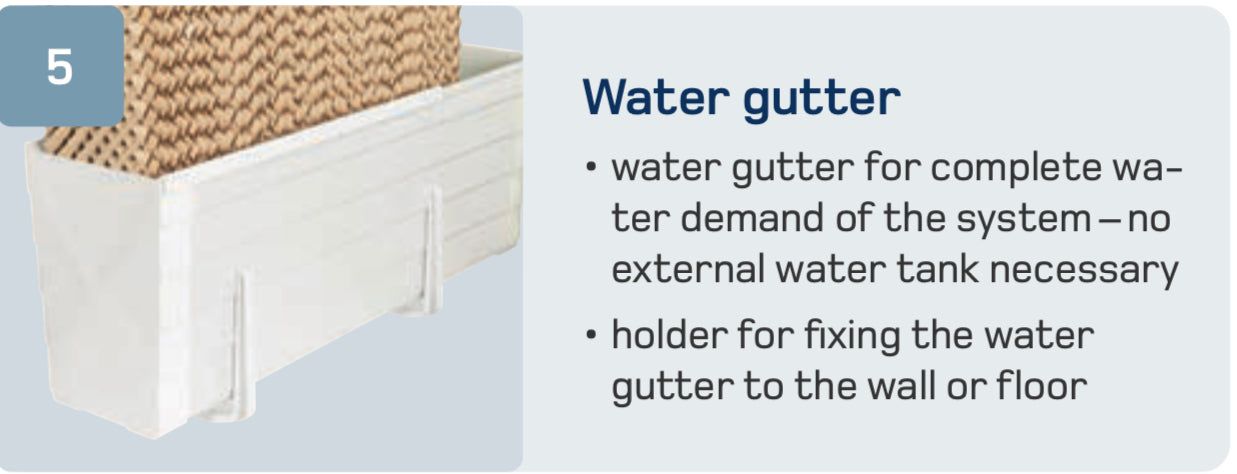

the water gutter contains the entire water requirement for the system; no external water tank is needed
-

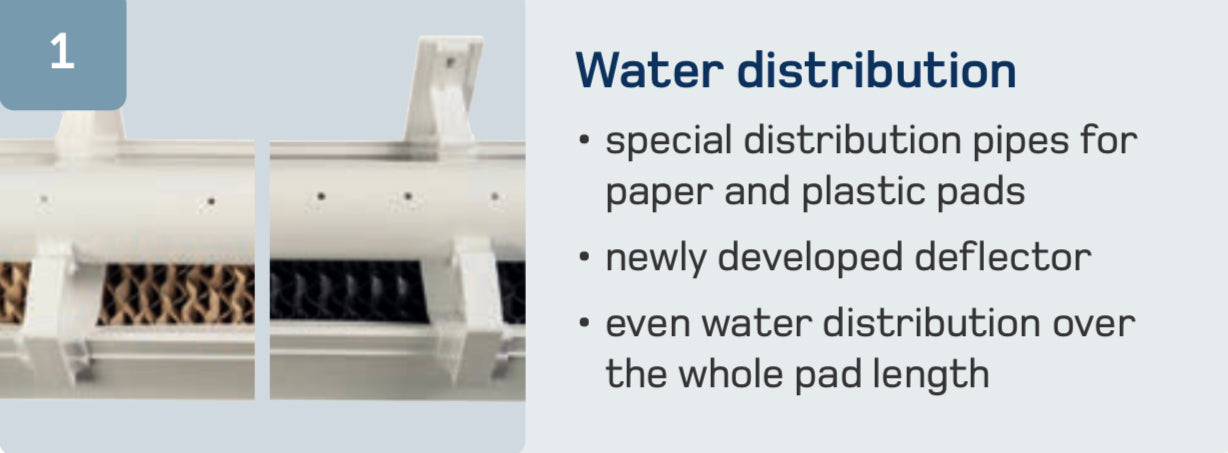

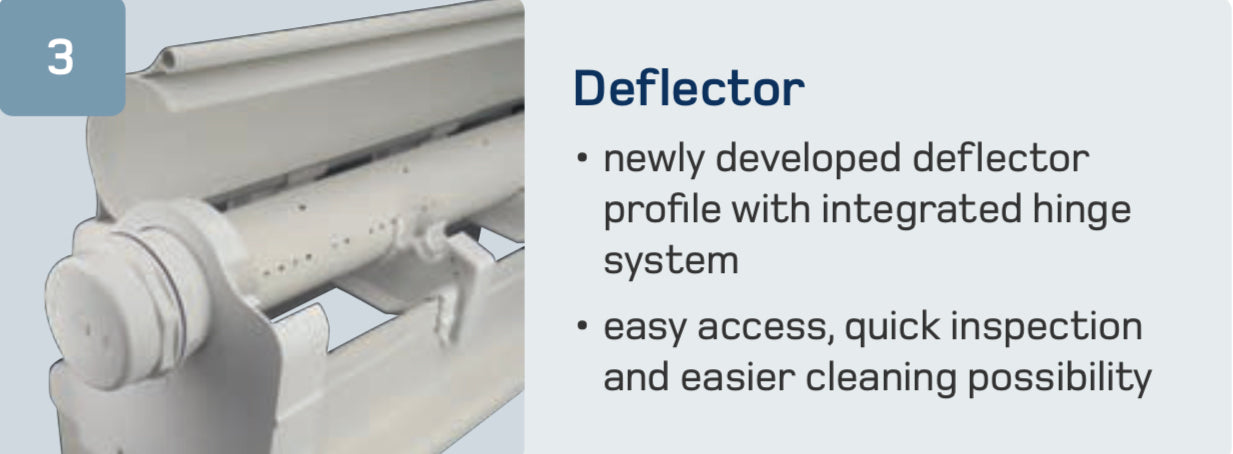

ideal water distribution over the entire pad length due to the newly designed deflector with integrated hinge system
-

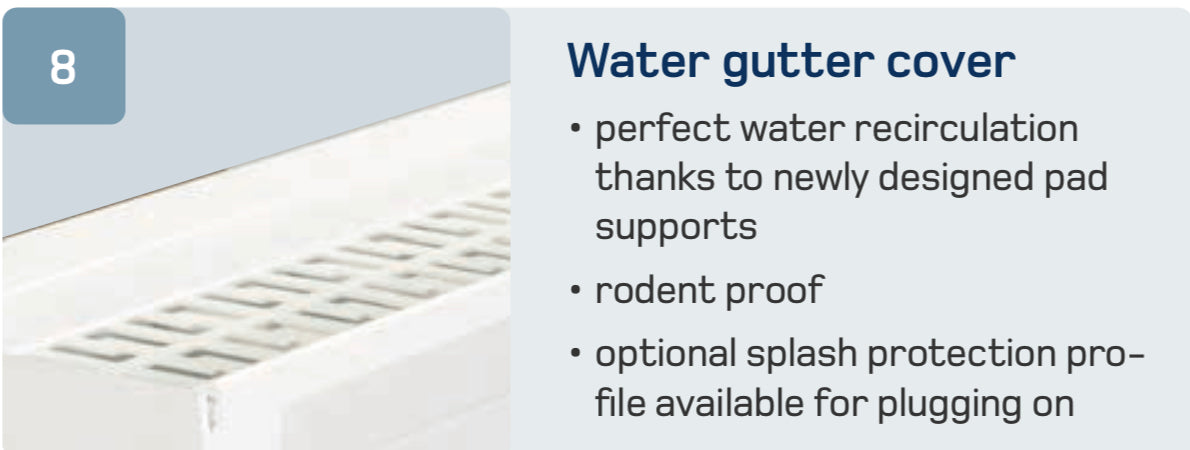

newly designed water trough: rodent-proof cover, perfect water recirculation
-

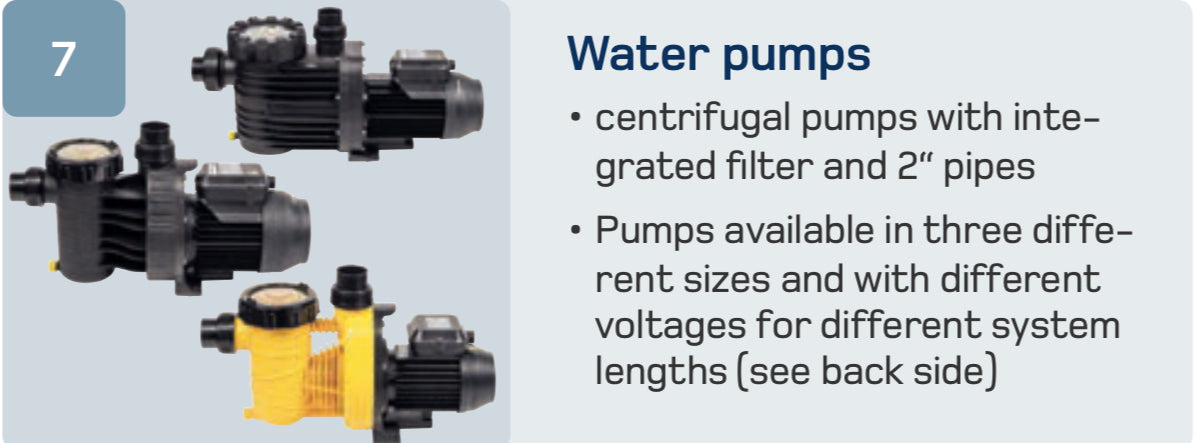

robust centrifugal water pumps available in different sizes and different voltages
